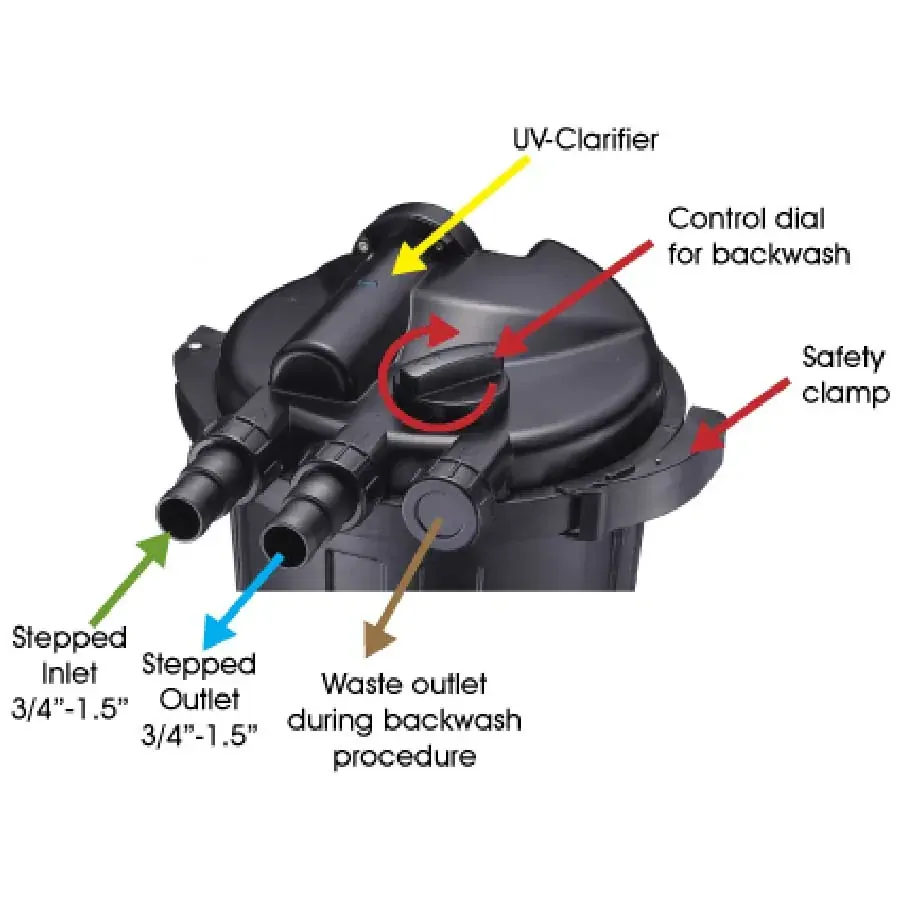

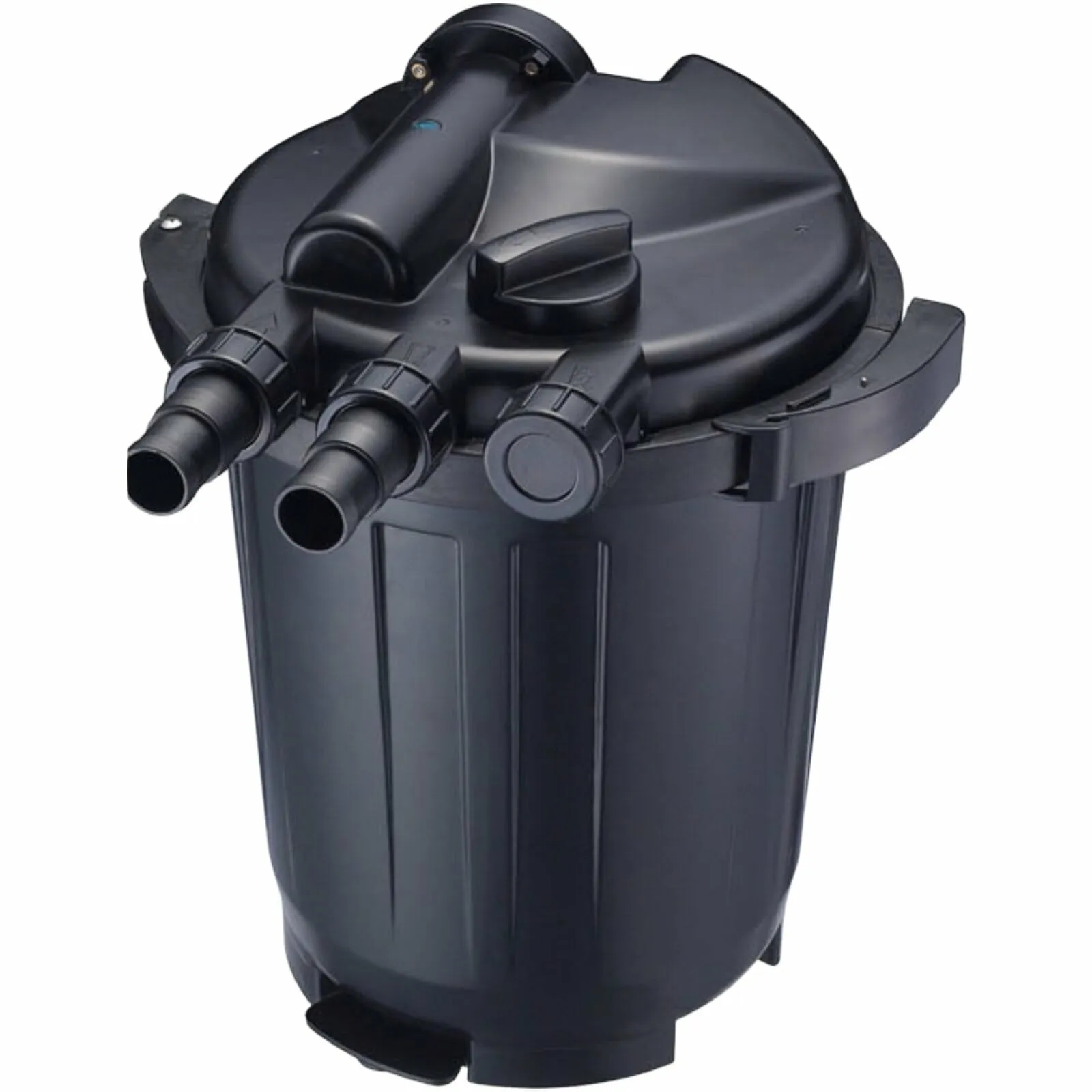

ClariTec Pressurised Filter With UVC

Features & Benefits:

  • Solid construction
  • Deep cleaning power
  • Greater filter volume
  • Available with and without UV-C
  • Includes filter media
  • Supplied with all hose connectors
  • Remote UV-C ballast unit

2 + 1 Year Guarantee

Spare Parts:

  • 25208S - Sponge - 25ppi Yellow ClariTec 3000/5000/10000/15000/UV 208s
  • 25209S - Sponge - 20ppi Green ClariTec 5000/10000/15000/UV 209s
  • 25210S - Sponge - 20ppi Green ClariTec 3000/5000/10000/15000/UV 210s
  • 25211S - Sponge - 15ppi Black ClariTec 5000/10000/15000/UV 211s
  • 25212S - Sponge - 15ppi Black ClariTec 3000/5000/10000/15000/UV 212s

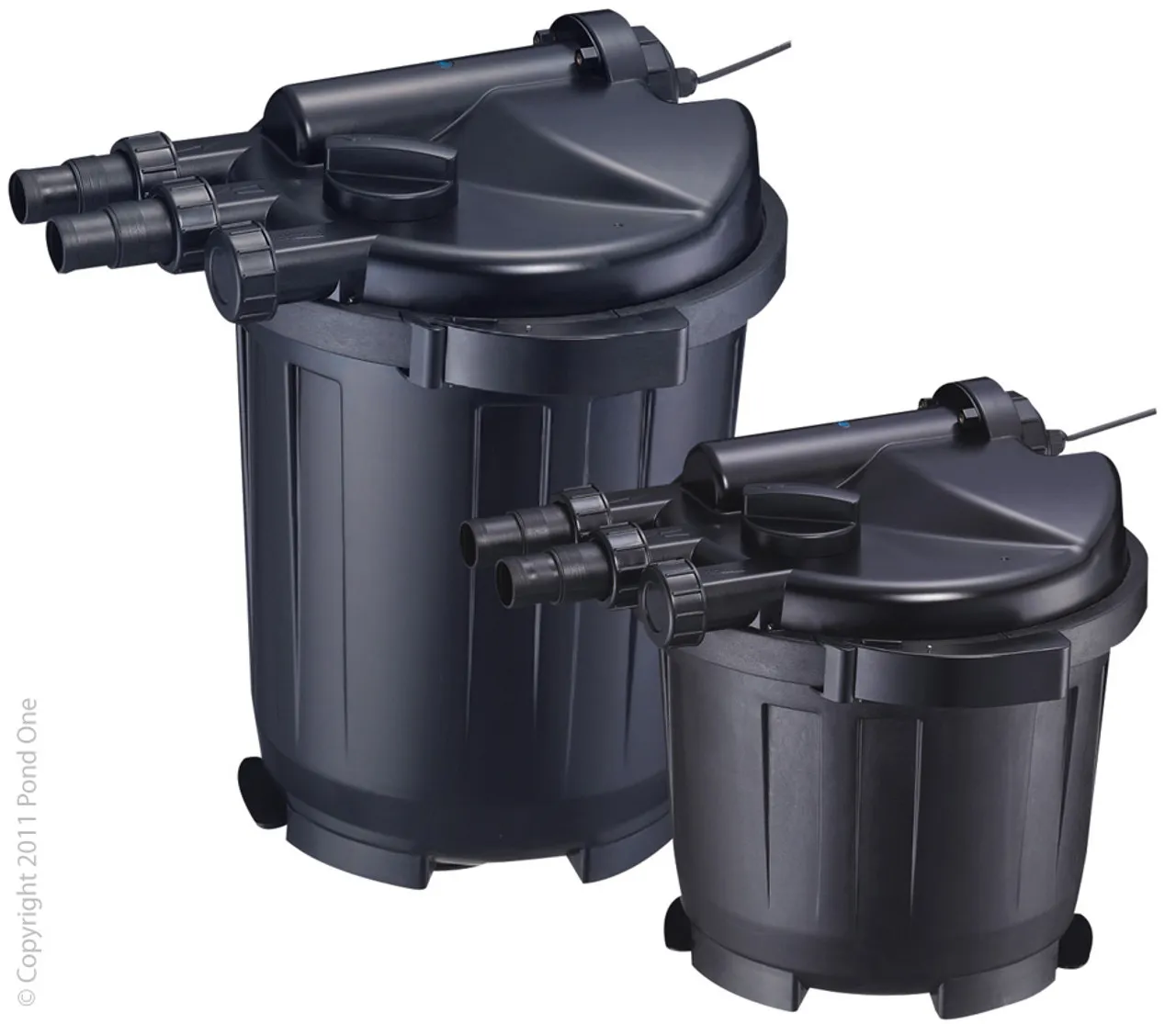

Available in Various Sizes:

Description:  ClariTec 3000 Pressurised Filter with UV ClariTec 5000 Pressurised Filter with UV ClariTec 10000 Pressurised Filter with UV ClariTec 15000 Pressurised Filter with UV
Item Code:  93044 93046 93072 93071
Max Flow Rate: 3000L/Hr 5000L/Hr 10000L/Hr 15000L/Hr
Fitting in/out: 3/4" 1.5", 19-37mm 3/4" 1.5", 19-37mm 3/4" 1.5", 19-37mm 3/4" 1.5", 19-37mm
UVC Power:  9W 9W 13W 13W
Capacity: 15.5L 21.5L 27.5L 33.5L
Filter Height: 35cm 46cm 56cm 66cm
Filter Diameter:  39cm 39cm 39cm 39cm
UVC Cable Length: 10m 10m 10m 10m
Recommended Pond Size • Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 3000L
• Typical pond with plants and average fish contents and average sun exposure : 1500L
• Heavily stocked pond with plants and larger fish or greater than average sun exposure : 750L
• Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 5000L
• Typical pond with plants and average fish contents and average sun exposure : 2500L
• Heavily stocked pond with plants and larger fish or greater than average sun exposure : 1200L
• Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 10000L
• Typical pond with plants and average fish contents and average sun exposure : 5000L
• Heavily stocked pond with plants and larger fish or greater than average sun exposure : 2500L
• Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 15000L
• Typical pond with plants and average fish contents and average sun exposure : 7500L
• Heavily stocked pond with plants and larger fish or greater than average sun exposure : 3700L



*When choosing the appropriate pump size the following needs to be taken into consideration: hose length to filter, hose height to filter, hose diameter used, bends and angles in the hose to filter. All of these factors affect the end flow rate of the pump. As a guide, use the following calculations and match them to the head height values to cross reference end flow of the pump in l/ph.

Head height refers to the height the pump must push water vertically to the filter however, other factors listed below also add to the ultimate head height values.

• For every 1m of pipe is equivalent to 10cm of head height.
• For every 1 size hose diameter reduced from the maximum outlet diameter of the pump is equivalent to 1m of head height.
• For every 90 degree bend in the hose is equivalent to 1m head height.
• For every 45 degree bend in the house is equivalent to 50cm of head height.

SKU 9325136054941
Brand Pond One
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.580m
Shipping Length 0.400m
Shipping Cubic 0.092800000m3
